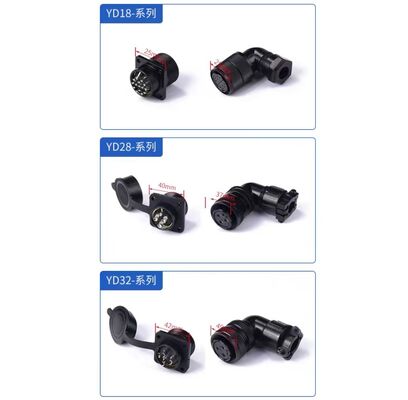

Waterproof Servo Motor Connector YD28 Aviation Plug with 1000V Voltage Rating and Wide Temperature Range -40℃ to +105℃

Product Description:

The Servo Motor Connectors are precision-engineered components designed to meet the demanding requirements of various servo motor applications, including Electro Hydraulic Servo systems, DC Servo Motor Drive setups, and Hydraulic Brake Motors. These connectors provide reliable electrical connections that ensure optimal performance and durability in challenging environments.

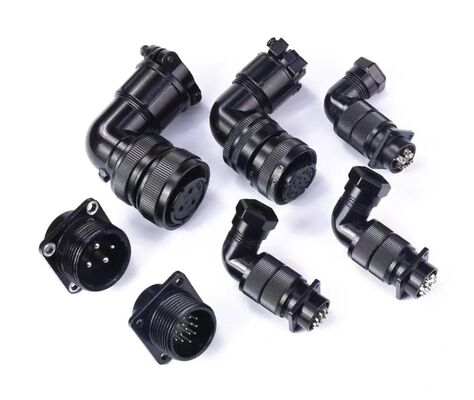

Available in multiple configurations, the Servo Motor Connectors come with a variety of contact options to suit diverse application needs. The connectors feature 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN contact arrangements, allowing for flexible integration with different servo motor systems. This range of pin counts ensures compatibility with a wide array of devices, from simple control circuits to complex multi-signal motor drives.

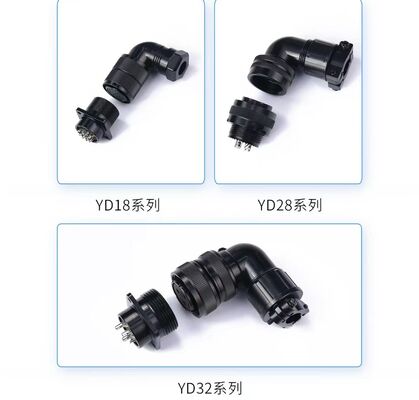

Mounting versatility is a key attribute of these connectors. They are designed for both Panel Mount and Cable Mount installations, providing users with the flexibility to choose the most suitable mounting type based on their system layout and space constraints. Panel Mount connectors offer secure, fixed attachment to control panels or equipment enclosures, while Cable Mount options facilitate easy connection and disconnection in cable harness setups.

The termination of the contacts is engineered to accommodate various wiring preferences, with options for both Crimp and Solder termination types. Crimp terminations provide a fast and reliable method for attaching wires, ensuring a solid mechanical and electrical connection that resists vibration and mechanical stress. Solder terminations, on the other hand, offer enhanced connection integrity, ideal for applications requiring robust and permanent wiring solutions.

Contact plating plays a crucial role in the performance and longevity of Servo Motor Connectors. These connectors feature contacts plated with either high-quality Silver or Gold. Silver-plated pins are known for their excellent electrical conductivity and cost-effectiveness, making them suitable for most servo motor applications. Gold-plated pins, meanwhile, offer superior corrosion resistance and stable contact resistance over time, which is critical for high-reliability environments such as Electro Hydraulic Servo and DC Servo Motor Drive systems.

Designed to operate reliably under a wide range of environmental conditions, the Servo Motor Connectors are rated for operating temperatures from -40℃ to +105℃. This broad temperature range ensures consistent performance in harsh industrial environments, including those with significant temperature fluctuations. Whether used in outdoor hydraulic brake motors or indoor servo control panels, these connectors maintain their electrical integrity and mechanical stability.

In summary, the Servo Motor Connectors provide a comprehensive solution for connecting and controlling Electro Hydraulic Servo, DC Servo Motor Drive, and Hydraulic Brake Motor systems. Their multiple pin configurations, mounting options, and termination types offer unmatched adaptability, while the choice of silver or gold contact plating ensures optimal electrical performance and durability. Coupled with their wide operating temperature range, these connectors are engineered to deliver reliable, long-lasting service in demanding servo motor applications.

Features:

• Product Name: Servo Motor Connectors
• Termination Type: Crimp/Solder
• Number of Contacts: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN
• Operating Temperature Range: -40℃ to +105℃
• Contact Plating Options: Silver Plated Pins, Gold Plated Pins
• Voltage Rating: 1000V
• Compatible with AC Servo Drive systems
• Suitable for DC Servo Motor Drive applications
• Ideal for AC Brushless Servo Motor connections

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are engineered to provide reliable and efficient connectivity solutions for a wide range of industrial and automation applications. Originating from China and certified with CE and ISO9001 standards, these connectors ensure top-notch quality and performance. Designed to support both AC Servo Motor Driver and DC Servo Motor Drive systems, they are ideal for seamless integration in various servo motor setups.

These connectors cater to diverse application occasions, including industrial automation, robotics, CNC machinery, and precision control systems. Their high voltage rating of 1000V and versatile current ratings ranging from 1A to 10A make them suitable for different power requirements. Whether you are dealing with high-performance AC Servo Motor Driver units or DC Servo Motor Drive configurations, the NO MARK 6FX2003 connectors guarantee stable electrical connections with minimal signal loss.

With multiple pin configurations available—8-pin, 4-pin, 6-pin, 12-pin, and 17-pin—the connectors offer flexibility for various wiring schemes and control circuits. The contact plating options, including silver and gold-plated pins, ensure excellent conductivity and corrosion resistance, enhancing durability in challenging environments. The connectors support both panel mount and cable mount installation types, making them adaptable to different mechanical setups and space constraints.

In terms of application scenarios, these connectors are perfect for use in manufacturing plants where AC Servo Motor Drivers are employed to control automated production lines. They are also widely used in robotics for precise motion control, as well as in packaging machinery, conveyor systems, and other automated equipment requiring reliable servo motor connections. Additionally, their robust design supports long-term operation in harsh industrial environments, ensuring consistent performance over time.

From small-scale automation projects to large industrial installations, the supply ability of 1000 pieces per day and a minimum order quantity of 100 units make the NO MARK 6FX2003 connectors an excellent choice for businesses seeking dependable components. The packaging in carton boxes ensures secure transportation, and the delivery time of 1-3 working days facilitates quick project turnaround. Payment terms are flexible, including T/T and PayPal options, accommodating various procurement preferences.

In summary, the NO MARK Servo Motor Connectors 6FX2003 are a versatile and reliable solution for connecting AC Servo Motor Driver and DC Servo Motor Drive systems. Their high electrical ratings, multiple contact options, and robust mechanical design make them indispensable in industrial automation, robotics, and machinery control applications.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards for DC Servo Motor Drive, AC Servo Drive, and Electro Hydraulic Servo applications. Manufactured in China under the trusted brand NO MARK, these connectors come with CE and ISO9001 certifications, ensuring reliable quality and performance.

We offer customization services tailored to your specific needs, with a minimum order quantity of 100 units. The connectors support wire gauges ranging from 18-24 AWG or larger, including AWG 3-12 diameter, and are available in both panel mount and cable mount configurations to suit various installation requirements.

Each connector features 6PIN or 7PIN insulation resistance options, providing secure and stable connections for your servo motor systems. Our supply ability is robust, with a capacity of 1000 pieces per day, ensuring prompt fulfillment of your orders.

Packaging is carefully done using carton boxes to protect the connectors during transit. Delivery time is swift, typically within 1-3 working days. Payment terms are flexible, accepting T/T and PayPal for your convenience.

Choose our 6FX2003 Servo Motor Connectors for dependable connectivity solutions in your DC Servo Motor Drive, AC Servo Drive, and Electro Hydraulic Servo projects. Contact us today to discuss your customization requirements and secure high-quality connectors tailored to your application.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor applications. These connectors ensure optimal signal integrity and power transmission, supporting high-performance servo systems in various industrial environments.

Technical support for our Servo Motor Connectors includes assistance with product selection, installation guidance, troubleshooting, and maintenance tips to ensure maximum efficiency and longevity of your servo motor setup.

We offer comprehensive services such as custom configuration, compatibility verification, and replacement part sourcing to meet your specific requirements. Our team is dedicated to helping you achieve seamless integration and optimal performance of your servo motor systems.

For detailed technical documentation, wiring diagrams, and firmware updates related to our Servo Motor Connectors, please refer to the resources provided on our website or contact our support team.
